unexpected_kernel_mode_trap BSOD fix Windows 11 guide
For an unexpected_kernel_mode_trap BSOD fix on Windows 11, I start with minidumps and the last hardware or driver change. If memtest or a RAM swap reproduces the crash, I treat memory or BIOS settings first; otherwise I check chipset and storage drivers. Ignore that order, and you can burn hours replacing the wrong part while the PC keeps rebooting or corrupting files. This guide follows a cause-first triage flow for minidumps, recent changes, RAM, AMD chipset, firmware, and repair steps.
This guide is part of our Windows BSOD stop codes: full list and fixes series.
What Unexpected Kernel Mode Trap means on Windows 11
This stop error is a kernel crash, not a normal app fault. The UNEXPECTED_KERNEL_MODE_TRAP bug check has a value of 0x0000007F. It means the Intel CPU generated a trap and the kernel failed to catch this trap, which can happen with faulty memory, bad firmware, or a driver that corrupted kernel state.
On Windows 11, the screen may be black on version 24H2 rather than blue. That visual change does not alter the diagnosis. The useful clues are the stop code, whether the crash repeats at boot, and whether it appears only under load or right after a change.

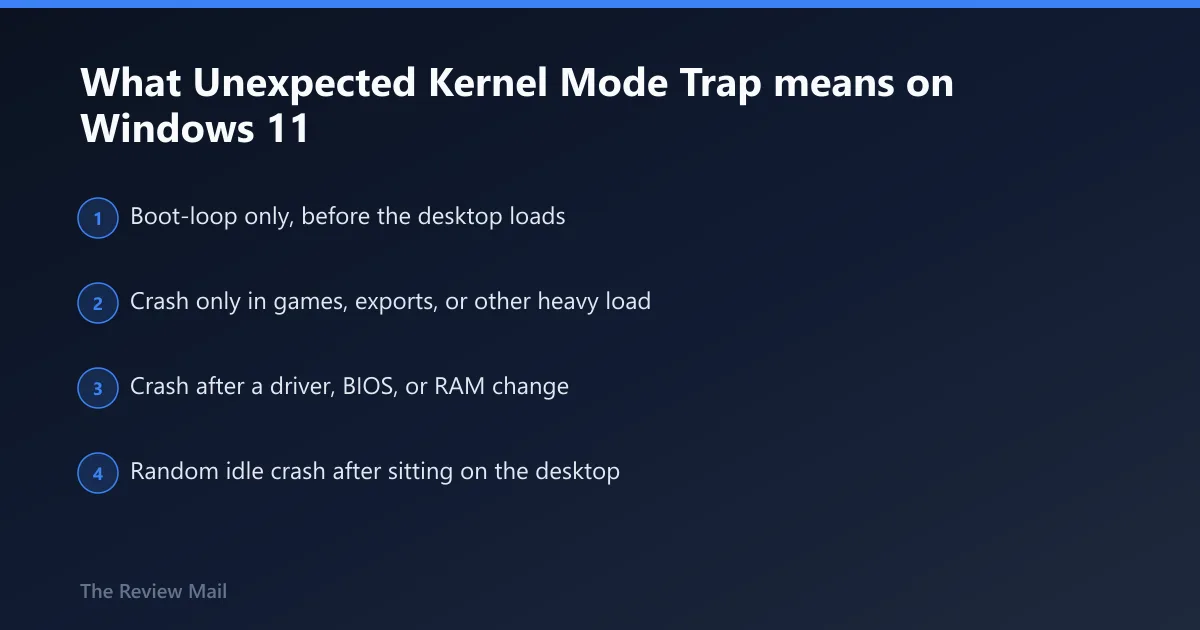

What symptoms matter first
- Boot-loop only, before the desktop loads
- Crash only in games, exports, or other heavy load
- Crash after a driver, BIOS, or RAM change
- Random idle crash after sitting on the desktop
According to Blue screen of death – Wikipedia — Wikipedia states Windows 11 version 24H2 changed the BSOD background to black. (source)
Which cause is most likely?
Rank the likely causes by the symptom pattern. RAM comes first, then AMD chipset drivers on affected systems, then BIOS or firmware issues, then recent driver changes, then thermal stress or overclocking, and finally broader Windows corruption. The pattern usually points farther than guesswork does.
Record recent hardware swaps, BIOS updates, memory speed changes, and new software before changing anything else. A crash that starts after a RAM upgrade is a different branch from one that appears only after gaming or only after a BIOS flash.
Decision checklist by symptom pattern
| Symptom pattern | Most likely branch | Next best action |
|---|---|---|
| Boot-loop only | RAM, BIOS, or kernel driver | Enter Safe Mode and check minidumps, then test memory |
| Gaming or load-triggered | Thermal stress, RAM, or chipset | Check temperatures, remove any overclocking, update AMD chipset drivers |
| After driver update | Bad driver or rollback needed | Use Device Manager to roll back or uninstall the driver |
| After BIOS update | Firmware setting or compatibility issue | Load defaults, then re-check stability and minidumps |
| After RAM upgrade | Memory seating or faulty module | Reseat RAM and test one stick at a time |
| Random idle crashes | RAM, firmware, or Windows corruption | Read dumps, test memory, then repair Windows files |
How do I read minidumps for this BSOD?
Start in C:\Windows\Minidump. Those files can show whether the crash leans toward memory, chipset, or another driver fault, and the crash parameters help separate a bad module from a driver chain reaction. If the PC is unstable, copy the folder to a USB drive first.
If the system has several crashes, zip the minidumps before sharing them for review. That keeps the files together and preserves the exact set of recent failures. A single dump can mislead; a small batch often shows whether the same module or driver is involved each time.
- Open File Explorer and go to
C:\Windows\Minidump. - Copy the newest .dmp files to another location.
- Zip the files before upload or sharing.
- Note the stop code and the exact timing of each crash.
Fix RAM and memory stability first
RAM is the first hardware suspect because this stop error often traces back to memory problems. If the system changed after a RAM upgrade, a reseat or a one-stick test can separate a bad module from a bad slot or a memory profile that no longer holds under load.
Do this before a reset. A clean Windows install will not fix a failing stick, loose seating, or unstable memory timing. If crashes continue after memory checks, treat the module as suspect and test with known-good memory if available.
- Shut down, unplug power, and open the case.
- Reseat each RAM module fully.
- Boot with one stick at a time if there are multiple modules.
- Run Windows Memory Diagnostic or memtest86.
- Replace any module that fails or reproduces the crash.
Should I update AMD chipset drivers or BIOS?
Yes, if the system uses AMD and the crash started after a chipset, firmware, or stability change. Install the vendor-recommended AMD chipset driver version from the PC or motherboard support page, because the wrong package or an older generic version can keep the system unstable on Windows 11.
Check the manufacturer support page for a BIOS update if instability began after firmware changes or if crashes show up as random boot failures or load failures. If BitLocker is enabled, make recovery keys and confirm you can access them before flashing.
- Open the PC or motherboard support page.
- Download the vendor-recommended AMD chipset driver version.
- Install it, then restart.
- If instability remains, check for a BIOS update from the same support page.
- Before flashing, confirm BitLocker status and recovery access.
Repair Windows files and rule out software corruption
After memory and vendor-specific drivers are cleared, repair Windows itself. First run DISM, then run SFC. That order matters because DISM fixes the component store that SFC depends on, and a damaged store can make SFC report the wrong result or stop before it finishes cleanly. (wikihow.com)
Use the built-in BSOD troubleshooter in the Get Help app as well. Search for Troubleshoot blue screen error. It will not fix bad RAM or a bad BIOS, but it can point to a common Windows-side repair path when corrupted system files are behind the crash.
Dism /online /cleanup-image /restorehealth
SFC /scannow- Open an elevated Command Prompt or Terminal.
- Run
Dism /online /cleanup-image /restorehealth. - After DISM finishes, run
SFC /scannow. - Open the Get Help app.
- Search for Troubleshoot blue screen error.

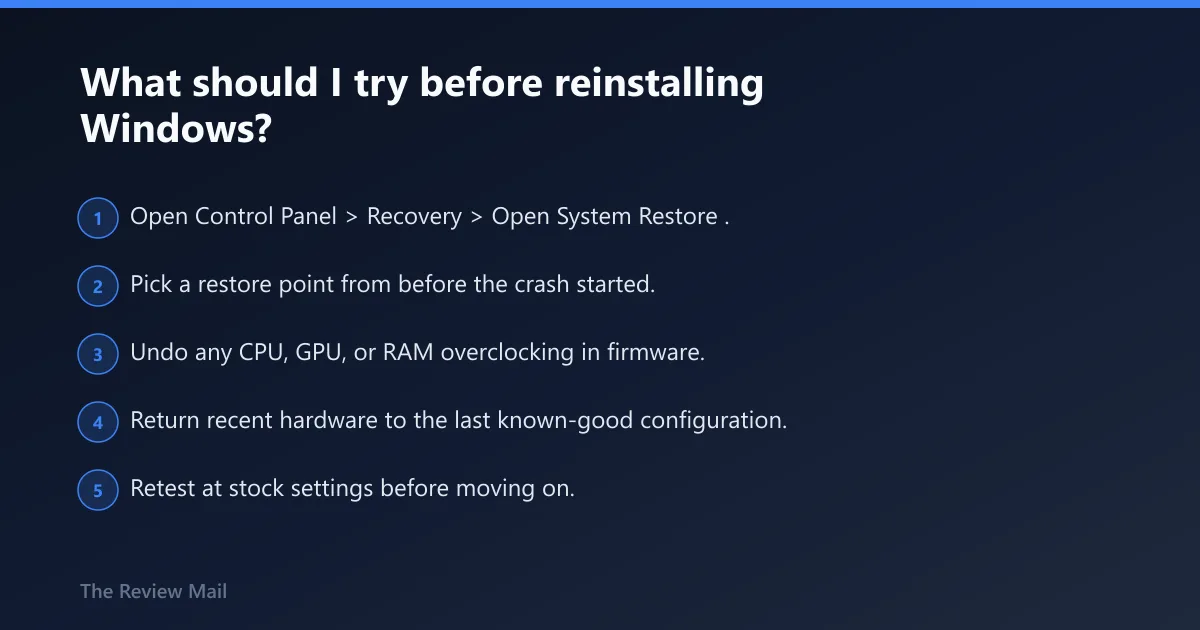

What should I try before reinstalling Windows?
Use System Restore first if the crash began after a recent driver, update, or settings change. It rolls the machine back to a restore point and is safer than a full reinstall when the timing clearly matches one recent change. Also undo overclocking or memory tuning before chasing deeper repair paths.
If the error started after a hardware swap, return the machine to the last known-good configuration. That means original RAM, original storage layout, and stock firmware settings. A reset is not the first move when a new part or a fresh tweak is the obvious trigger.
- Open Control Panel > Recovery > Open System Restore.
- Pick a restore point from before the crash started.
- Undo any CPU, GPU, or RAM overclocking in firmware.
- Return recent hardware to the last known-good configuration.
- Retest at stock settings before moving on.
Do I need a BIOS update for unexpected kernel mode trap?
Not always. A BIOS update makes sense when crashes began after firmware changes, when the machine is unstable at boot, or when the board maker lists stability fixes for your model. Check the manufacturer support page first, and handle BitLocker carefully before flashing if it is in use.
If the system is otherwise stable and the crash points to a clear bad driver or failing stick of RAM, BIOS flashing is not the first move. It is a targeted step, not a blanket answer.
- Check the motherboard or PC support page for the current BIOS version.
- Compare it to the installed version in firmware setup.
- Review the change notes for stability fixes.
- Confirm BitLocker status before flashing.
- Update only if the vendor release matches the problem pattern.

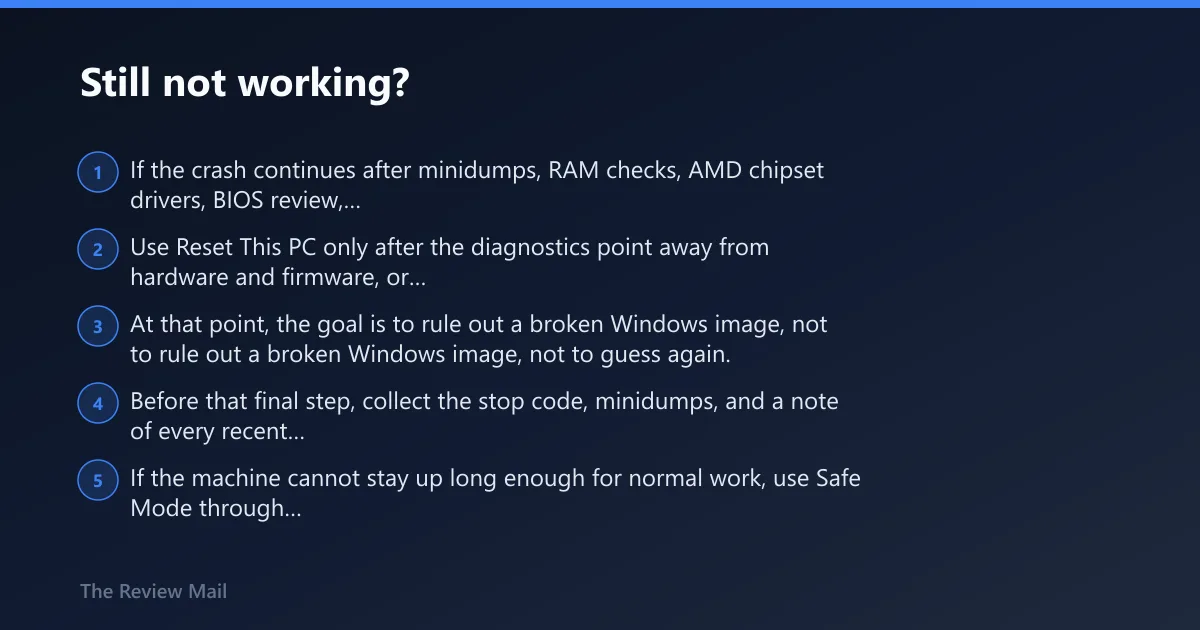

Still not working?
If the crash continues after minidumps, RAM checks, AMD chipset drivers, BIOS review, DISM, SFC, and System Restore, move to a full Windows reinstall. Use Reset This PC only after the diagnostics point away from hardware and firmware, or do a clean install if the machine keeps corrupting itself. At that point, the goal is to rule out a broken Windows image, not to guess again.
Before that final step, collect the stop code, minidumps, and a note of every recent change. If the machine cannot stay up long enough for normal work, use Safe Mode through Settings > Recovery > Advanced startup > Restart now > Troubleshoot > Advanced options > Startup Settings to finish the checks or to back up files.
The troubleshooting path includes a Safe Mode entry through Windows Settings and a driver rollback path in Device Manager.Prevention: keep the vendor chipset package current, avoid unstable memory profiles, and save a restore point before any BIOS or driver change.
Frequently asked questions
How do I fix unexpected kernel mode trap BSOD in Windows 11?
Start with the newest minidumps in C:\Windows\Minidump, then check the last hardware or driver change. Test RAM, install the vendor-recommended AMD chipset driver if relevant, run Dism /online /cleanup-image /restorehealth and SFC /scannow, then use System Restore if the crash started after a recent update.
What causes unexpected kernel mode trap on Windows 11?
The usual causes are faulty RAM, driver faults, firmware problems, or other kernel-level errors. Hardware failures, overheating, and bad BIOS settings can also trigger it. The quickest way to narrow it down is to compare the crash timing with the last memory, driver, or firmware change.
Is unexpected kernel mode trap caused by RAM or drivers?
Both are plausible, but RAM is the first hardware check because memory problems often trigger this stop error. If the dumps point to AMD chipset software or a specific driver, install the vendor-recommended package or roll back the last driver from Device Manager.
How do I check minidump files for unexpected kernel mode trap?
Open C:\Windows\Minidump and review the newest .dmp files, then zip them before sharing. If the same module or driver appears across several crashes, that pattern is more useful than a single file. Keep the stop code and exact crash timing with the dumps.
Should I update AMD chipset drivers for this BSOD?
On affected AMD systems, it is generally best to use the chipset driver version recommended by the PC or motherboard support page rather than an arbitrary package. If instability began after a chipset change, that update is one of the first fixes worth trying before a reset.
Can overheating cause unexpected kernel mode trap?
Yes. Overheating and other thermal stress can push the system into a kernel crash, especially during gaming or heavy exports. Check fans, heatsinks, and load temperatures, and undo overclocking or aggressive power tuning before moving to file repair or a reinstall.
